Fodder Container

Hydroponic Fodder Systems

Hydroponic green fodder system for sale , design, production and installation.

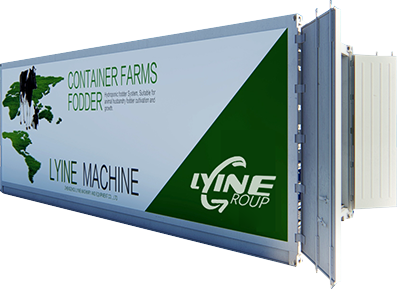

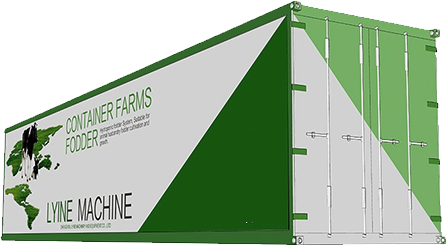

Hydroponic Fodder Container System
Lyine hydroponic fodder container is a new fresh fodder planting mode for animals.the system is automatically controlled by Programmable Logic Controller,automatic control via touch screen on the control panel.The system could provide the most suitable required environment for the fodder growth with energy saving,water saving,labor saving,environmental Protection,healthy.

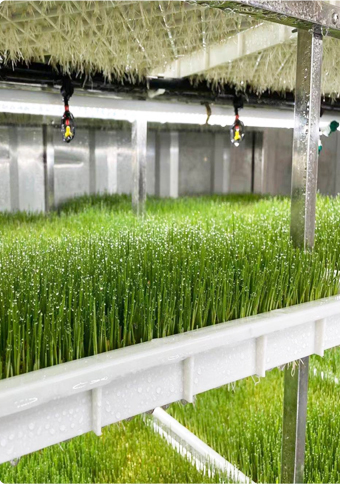

One button control temperature ,humidity,water supply and spray,light,Sterilization,ventilation,It is easy to be managed which makes cultivation of green grass for not only family& medium farm,but also big commercial farms,animals like cattle, cow, horse, sheep, camels, deer,chicken, goat,pig, rabbit etc.
Hydroponic fodder container system is an ideal solution for proving fresh fodder for animals bcz of high protein content,especially suit for any places with harsh growing environment such as land lacking,land barren,desert,very hot & super cool climate.




The fodder will grow from a dry seed to a 18~20 cm plant within 7 days.

The system can decrease the feeding cost by up to 60% and further more

Guarantee fresh feed supply 12 months of the year no matter weather.

Seeds of wheat,barley,oat,rye,corn,sorghum,beans and so on are available.
Advantages
1
All stainless steel frame and non-slip floor

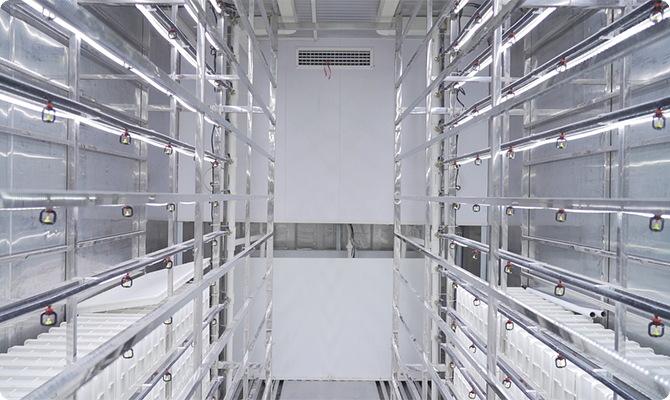

The interior of the container is made of high quality stainless steel as the frame , which has better corrosionresistance and higher strength than ordinary galvanized steel pipe , and effectively ensures the stability of the whole seedling system



2

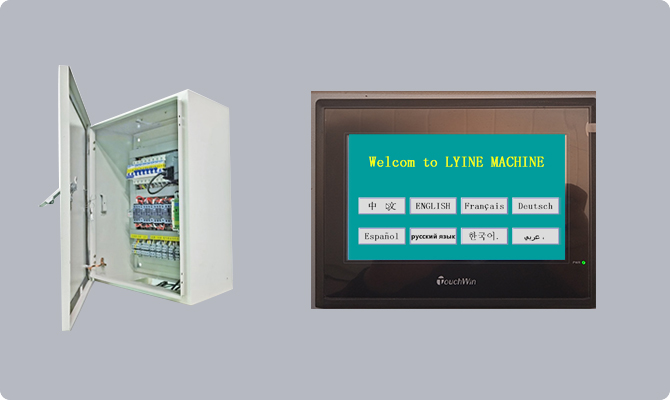

Centralized control system
PLC (Programmable Logic Controller) centralized control system integrates temperatureand humidity control system , spray system , sterilization system , light system , and ventilation system into digitaelectronic equipment with a microprocessor. The PLC can receive and send multiple type electronic signals to achieve full automatic control via touch screen with current 8 languages even more. The control system has the advantages of accurate data , quick response , safetstability and easy operation
3
Easy to operate / Less maintenance

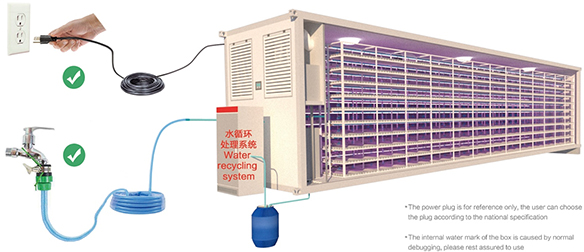

All the equipment has been installed and debugged , the air conditioning can work automatically according to thetemperature , no need to bother to install any accessories , just simply connect the water and electricity , we can start to use the machine directly. ( The water cycle treatment system is an optional equipment)
4

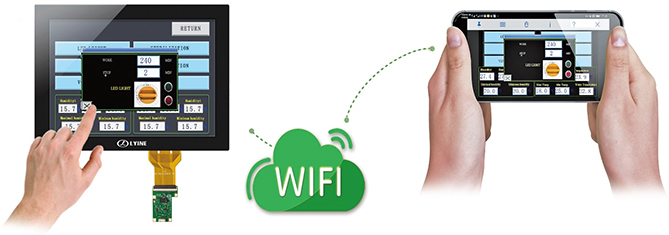

II Type Intelligent Controller / Wifi Remote Control 3
New generation of intelligent touch screen controller isequipped with 8 languages including English , Russianand Spanish for switching , visual data Window andone-click control operation , so that you can easily manage,the system. The Wifi remote control function means that you can monitor your system dynamics throughthe mobile terminal at any time and make corresponding controls in time
Sprout Machine Main Type
Parameter Specification
Specification 500KG daily output fodder container 1000KG daily output fodder container 1500KG daily output fodder container
Size 6.058*2.438*2.438M
(20FT freezer container)
12.8*2.45*2.9M
(40HQ freezer container)
12.8*2.45*2.9M
(40HQ freezer container)
Output 500kg /Day  1000kg/Day   1500kg/Day
Voltage 110V/220V/380V (Regular is 220V-50HZ)
Size & Tray NO. 85*40*4CM     260PCS 85*40*4CM      550PCS  85*40*4CM      700PCS
Layers 9 9 11
Water Consumption 0.5 CBM 0.925 CBM 1 CBM
Yield rate 1:8.8( 1kg seeds, yield 8.8 kg fresh fodder )
Growth cycle 7days
Gross weight 3 Ton 6 Ton 6.5 Ton
Power 10KW 15KW 18KW
If your land has not been planned , please tell us your demands , our team will give you the most satisfactory proposals
Which Crops Could be Planted?

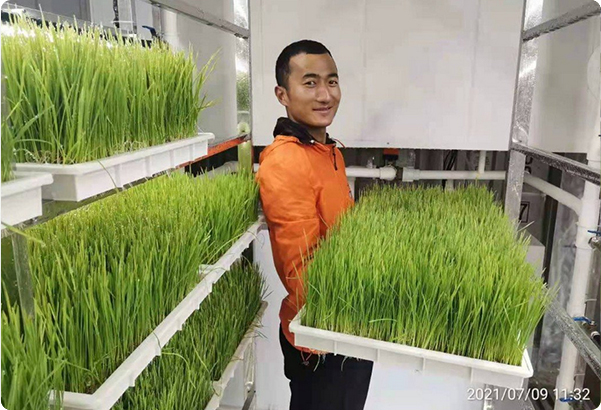

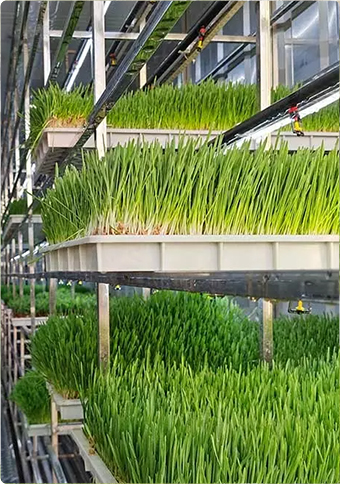

Wheat Seedling Planting
Corn Planting

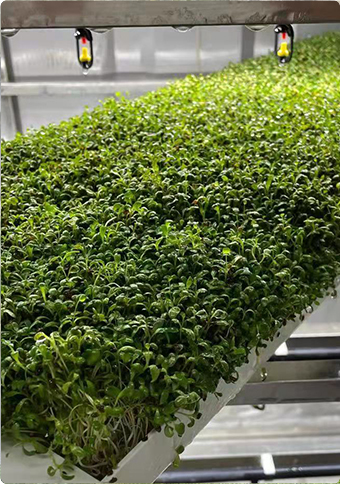

Forage Planting
Bean Planting

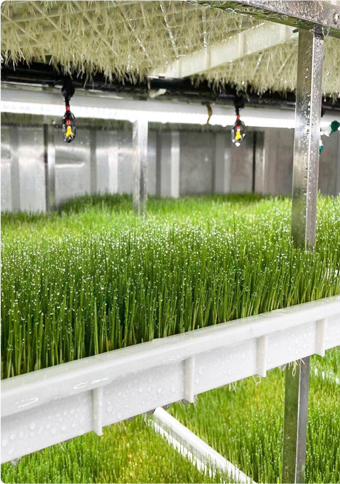

Container planting cycle is short and can harvest in 7 days
The fresh fodder can grow 20 cm within 7 days from seeds by lyine fodder container without any chemicals just need clean water supplement.
The growth cycle is shown in the figure below
Sprouting
Day 1
Day 2
Day 3
Day 4
Day 5
Day 6
Day 7

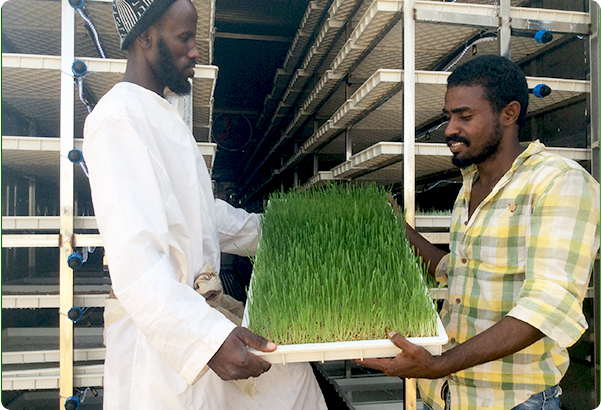

Hydroponic Fodder For Cattle, Pigs, Goats, Cows, Sheep, Poultry(Chicken), and Horses, etc

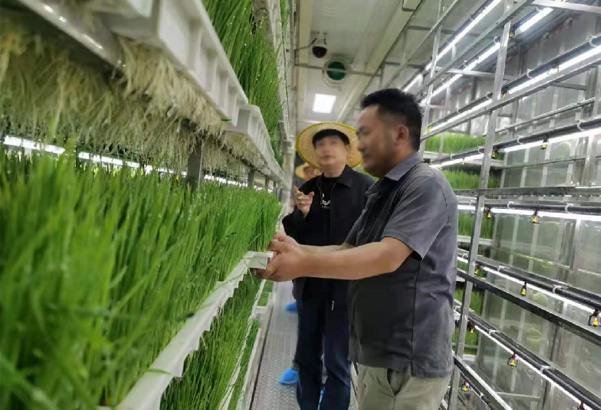

Case Rendering Display

Related Products
honor
Our mission is to shape the future of agriculture by providing efficient indoor farming solutions to produce fresh and contamination free vegetables, fruit, and flowers. Having technology as our back backbone and grow science in our DNA, we wish to support agricultural technicians around the world.



Related news
Q
The water content of the hydroponic pasture is too high. It seems that it will cause diarrhea but not feel full. It feels unreliable
A
Hydroponic pasture has high water content, and only eat this pasture, some animals will not adapt to it at first, and have diarrhea. We recommend matching appropriate dry feed and gradually increasing the proportion of hydroponic pasture, which can make cattle and sheep eat healthier.
Q
What is the cost and market price of hydroponic pasture?
A

The cost of hydroponic pasture is about 1.3 yuan per kilogram. Market prices vary from place to place, so you can do some research on the spot.

Q
Dry corn is 2 yuan per pound, and how much is left after drying for a pound of hydroponic pasture?
A
 If the hydroponic pasture is dried and fed to animals, it will lose its value. Hydroponic pasture can be directly fed to cattle and sheep.
