Vertical Hydroponics Tower Farming Solutions

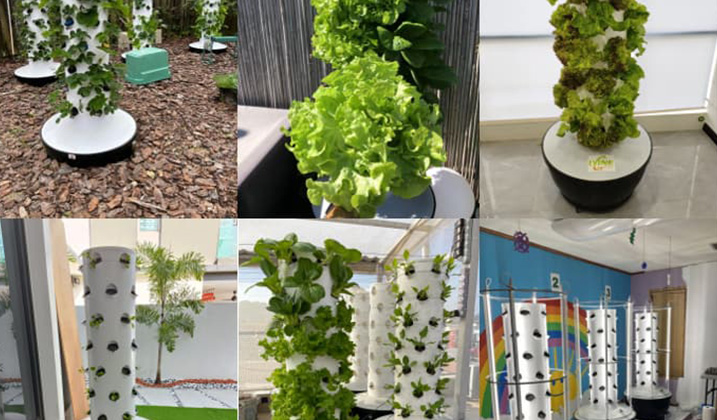

Outdoor Tower Farm

When setting up a Tower Farm outdoors as Rooftop, Terrance, Outside Location, the first obvious consideration is the weather and some Tower Farmers operate outside from Spring to Fall season. And there are movable wheels added at the bottom of the 100L water reservoir, it’s easy move the towers from outdoor to indoor building. We also provide the adjustable/expendable LED light growing kits are used for indoor during the Fall to Winter seasons.

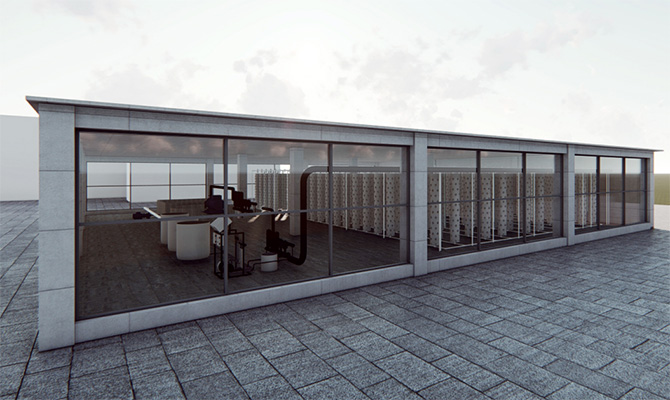

Indoor Tower Farm

Warehouses/Indoor Building need to be upgraded with suitable insulation and be upgraded/equipped in a way allowing acceptable levels of air exchange. Furthermore, in most cases, a full Control system needs to be installed for controlling the humidity, the temperature, the CO2 levels, etc.

We provide the unique design of the rotating function of the Tower Farm to save the cost of electric power consumption, and the Tower sections can be stacked according to height of the indoor space. The Run time will be 10-14 hours per day, depending on the crop, ambient light, etc.

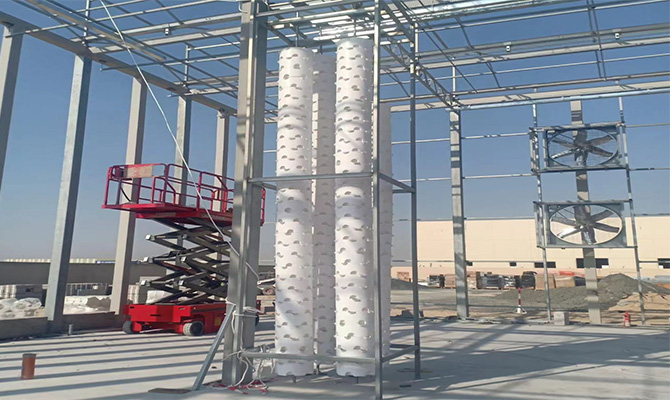

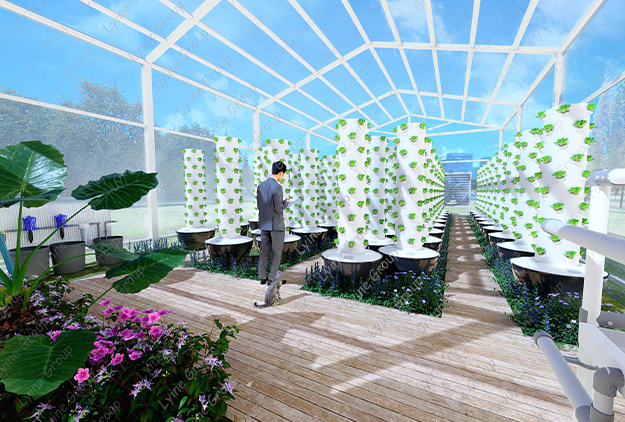

Greenhouse Tower Farm

A climate-controlled greenhouse is the best option to run a Tower farm 12 months of the year especially dealing with the extreme weather, which can be producing uninterrupted harvests.

We provide the modular Greenhouse Tower farm including the Polycarbonate Cover Greenhouse, Seeding nursery growing rack, Vertical Tower product, Nutrient Irrigation system etc.

What’s the average cost of the Tower Farm?

Regular Density 6P Towers	Height	Plants Per Tower	Modular Sections
1	1.6m	42	7
2	2.1m	60	10
3	2.4m	72	12
4	2.9m	90	15

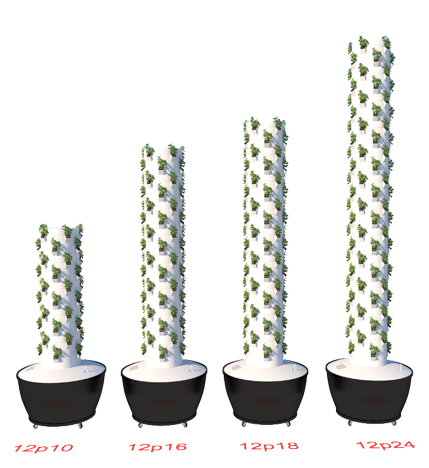

High Density 12P Towers	Height	Plants Per Tower	Modular Sections
1	1.6m	120	10
2	2.1m	192	16
3	2.4m	216	18
4	2.9m	288	24

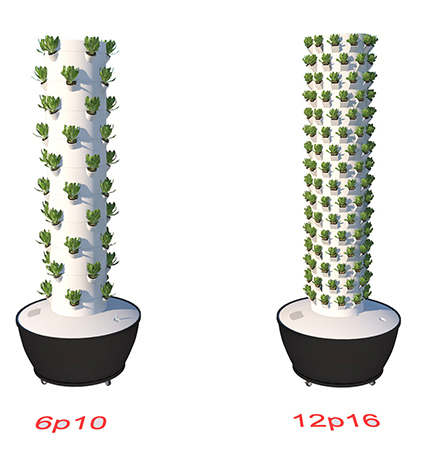

Comparison of Two Different Types of Tower

	Normal Density 6P	High Density 12P
Density	Normal	High
Types of vegetables suitable for planting	Leafy Greens/Herb	Microgreens /Baby Greens
Yield Per plant	120-200g	25g to 50g
Planting Ports Per Section	6	12.
Dimensions of Each Tower Section	16cm High/20cm Diameter	10cm High/20cm Diameter

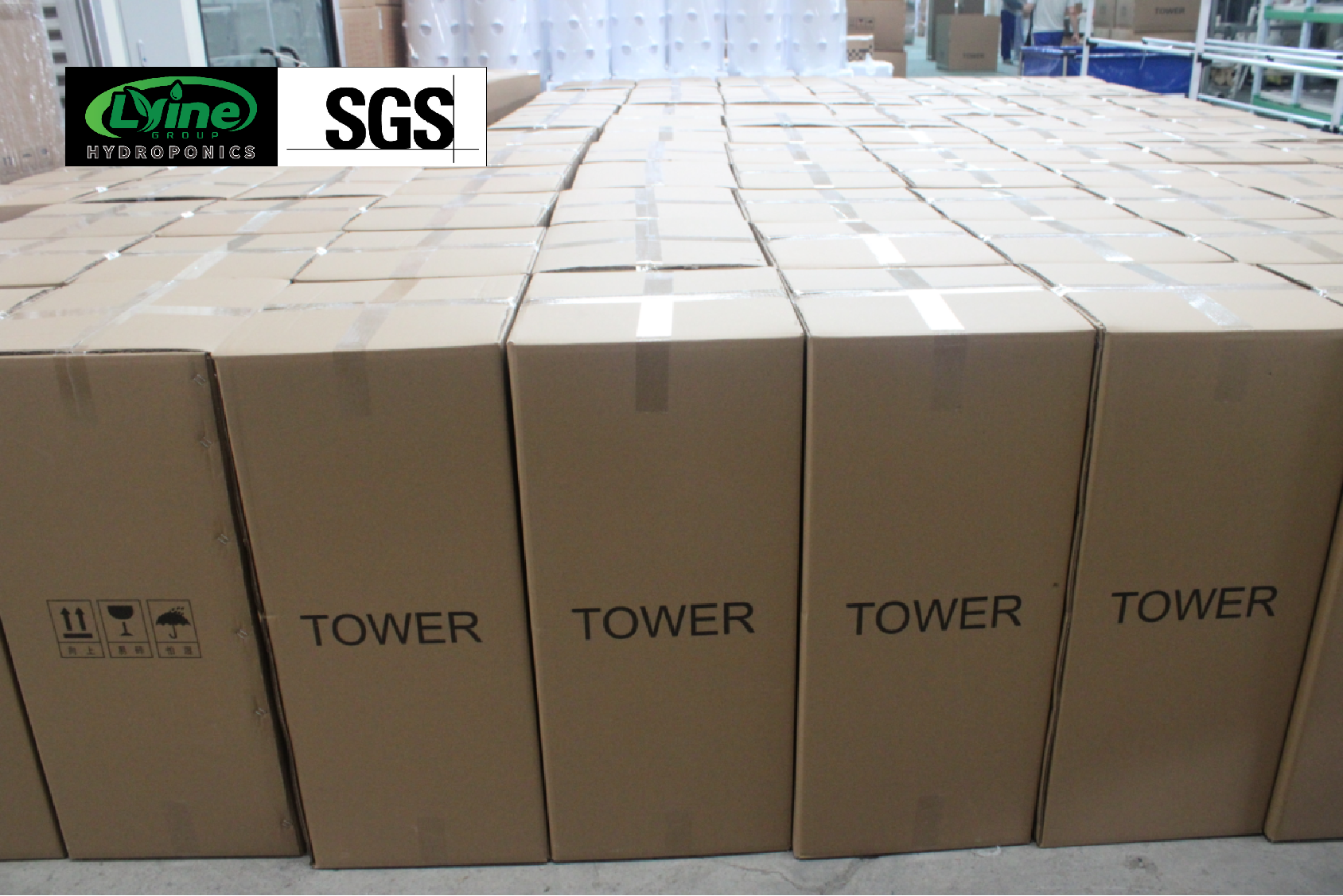

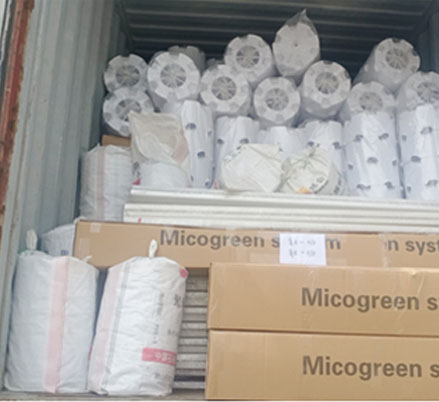

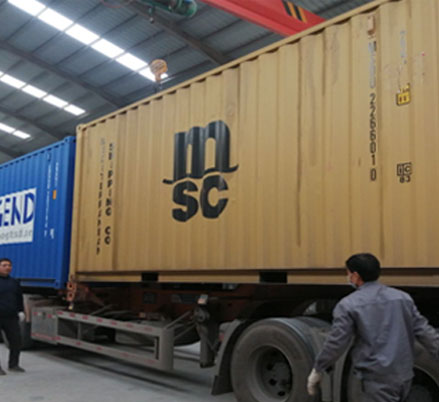

How many Towers Fit in 20FT and 40FT container shipment?

Single Side zip system

Model	20ft Container	40HQ Container
6P7(42 plants per tower)	115 towers	300 towers
6P10(60 plants per tower)	95 towers	240 towers
6P12(72 plants per tower)	80 towers	200 towers
6P15(90 plants per tower)	70 towers	170 towers
12P10(120 plants per tower)	120towers	310 towers
12P16(192 plants per tower)	80 towers	220 towers
12P18(216 plants per tower)	70 towers	180 towers
12P24(288 plants per tower)	55 towers	135 towers

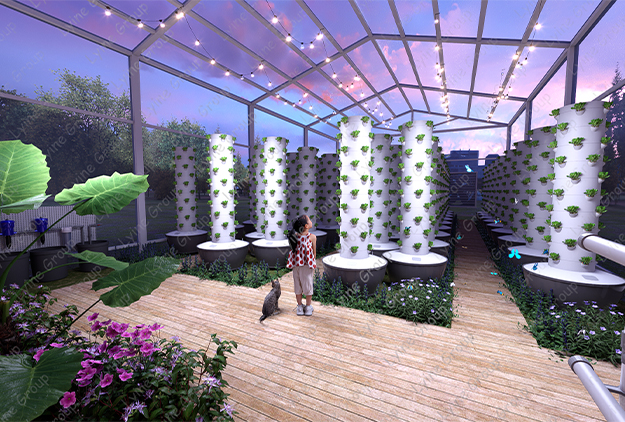

Water & Electric consumption, Labor involved to run a Tower Farm?

How much water does a commercial aeroponic tower use?

On average, a 3 m tall tower (90 growing ports) will consume 6 to 10 L water per day. Of course, everything depends on the growing conditions, temperatures, and crops being grown.

"Aside from an average of 75% space-saving, our towers allow to grow fruit, vegetables, herbs, and Towers using 95% less water than what is required to grow plants in the soil.

How much electricity does a commercial aeroponic tower use?

Let’s take the example of a Tower Farm featuring 10 towers and the electrical rate of $0.10 per kilowatt.

6P7 Tower - 20 watts per pump x 4.8 hours per day (3 minutes on, 12 minutes off) multiplied by the number of Towers = total wattage/day.

6P10 Tower - 50 watts per pump x 4.8 hours per day (3 minutes on, 12 minutes off) multiplied by the number of Towers = total wattage/day.

Artificial light requirements for indoor Tower Farm?

Indoor Tower Farms featured in airports, convention centers, or any other area of Indoor Building without natural light.

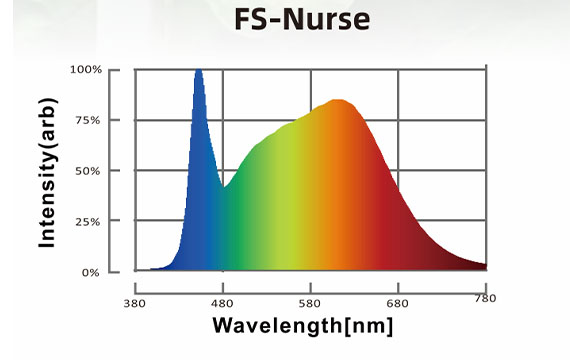

Full Spectrum with blue peak

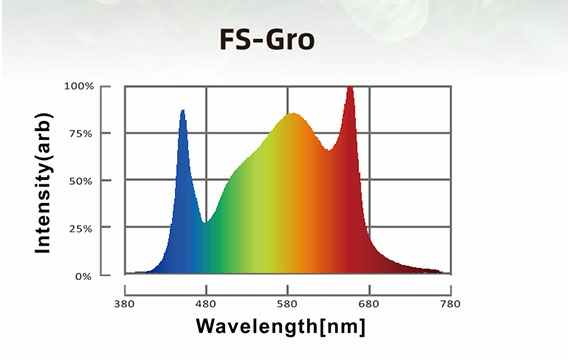

Full Spectrum deep red peak

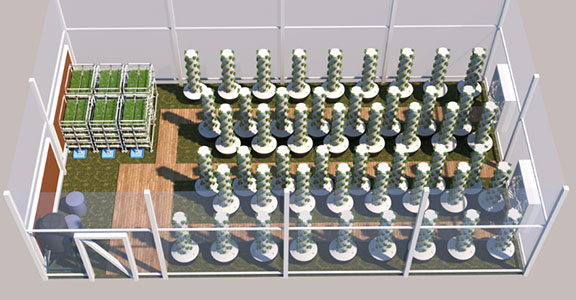

Layout design of the Tower Farm

A fully automated Tower Farm features an irrigation system which automatically delivers the water and the nutrients to each individual tower on an as-needed basis. It is fully automated and very simple to

assemble and operate.

If your land not yet planned , please give usyour demand , our team will give you mostsatisfactory propoals !
